Single-Hole Long-Barrel - Copper Compression Connectors

Single-Hole Long-Barrel - Copper Compression Connectors

More Views

Single-Hole Long-Barrel - Copper Compression Connectors

Part #: F4P CL - LB | Stock Code:

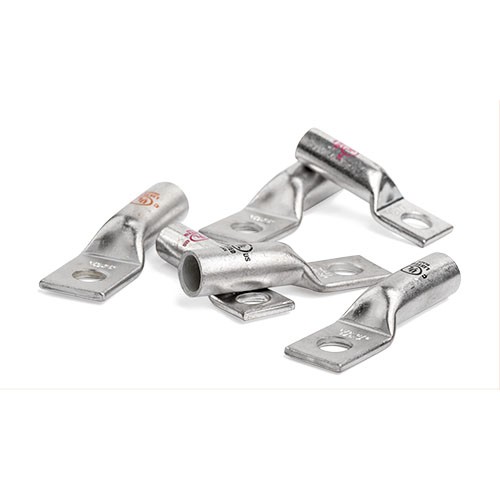

For high-quality, reliable connections, tin-plated copper compression connectors are ideal. Color coded for easy identification and available in a wide variety of wire and stud configurations, these lugs are UL listed and meet or exceed all industry standards.

Copper wire ONLY

Available through your local City Electric Supply.

Click here to find a branch near you.

View Specification Sheet - Compression Lugs

Product Features

Produced From High Conductivity Copper Tubing
Tin-plated to Provide Corrosion and Low Contact Resistance
Marked with Die Index and Color Coded
Listed for 35KV Maximum When Properly Installed

Specifications

F4P CL138-LB
#1 3/8" Long 1H Lug

Color: Pink
Number of Crimp: 2
Wire Range: #1
Stud Size: 3/8"
Strip Length: 1.102
A: 0.389
C: 0.519
J: 2.208
B: 1.200
D: 0.744
F: 0.125
E: 0.413
G: 0.370
G + H: 0.811
K: 0.196

F4P CL2038-LB
2/0 3/8" Long 1H Lug

Color: Black
Number of Crimp: 2
Wire Range: 2/0
Stud Size: 3/8"
Strip Length: 1.259
A: 0.440
C: 0.562
J: 2.677
B: 1.377
D: 0.814
F: 0.118
E: 0.413
G: 0.370
G + H: 1.062
K: 0.236

F4P CL2048-LB
2/0 1/2" Long 1H Lug

Color: Black
Number of Crimp: 2
Wire Range: 2/0
Stud Size: 1/2"
Strip Length: 1.259
A: 0.440
C: 0.562
J: 2.677
B: 1.377
D: 0.814
F: 0.118
E: 0.511
G: 0.370
G + H: 1.062
K: 0.236

F4P CL214-LB
#2 1/4" Long 1H Lug

Color: Brown
Number of Crimp: 2
Wire Range: #2
Stud Size: 1/4"
Strip Length: 1.023
A: 0.314
C: 0.421
J: 2.070
B: 1.102
D: 0.602
F: 0.102
E: 0.251
G: 0.370
G + H: 0.811
K: 0.157

F4P CL238-LB
#2 3/8" Long 1H Lug

Color: Brown
Number of Crimp: 2
Wire Range: #2
Stud Size: 3/8"
Strip Length: 1.023
A: 0.314
C: 0.421
J: 2.070
B: 1.102
D: 0.602
F: 0.102
E: 0.413
G: 0.370
G + H: 0.811
K: 0.157

F4P CL25048-LB
250 1/2" Long 1H Lug

Color: Yellow
Number of Crimp: 2
Wire Range: 250
Stud Size: 1/2"
Strip Length: 1.496
A: 0.594
C: 0.751
J: 3.031
B: 1.614
D: 1.090
F: 0.149
E: 0.511
G: 0.519
G + H: 1.062
K: 0.354

F4P CL256-LB
#2 5/16" Long 1H Lug

Color: Brown
Number of Crimp: 2
Wire Range: #2
Stud Size: 5/16"
Strip Length: 1.023
A: 0.314
C: 0.421
J: 2.070
B: 1.102
D: 0.602
F: 0.102
E: 0.330
G: 0.370
G + H: 0.811
K: 0.157

F4P CL30048-LB
300 1/2" Long 1H Lug

Color: White
Number of Crimp: 3
Wire Range: 300
Stud Size: 1/2"
Strip Length: 1.850
A: 0.657
C: 0.814
J: 3.385
B: 1.968
D: 1.188
F: 0.149
E: 0.511
G: 0.519
G + H: 1.062
K: 0.354

F4P CL3038-LB
3/0 3/8" Long 1H Lug

Color: Bright Orange
Number of Crimp: 2
Wire Range: 3/0
Stud Size: 3/8"
Strip Length: 1.259
A: 0.492
C: 0.622
J: 2.795
B: 1.377
D: 0.901
F: 0.125
E: 0.413
G: 0.472
G + H: 1.062
K: 0.314

F4P CL3048-LB
3/0 1/2" Long 1H Lug

Color: Bright Orange
Number of Crimp: 2
Wire Range: 3/0
Stud Size: 1/2"
Strip Length: 1.259
A: 0.492
C: 0.622
J: 2.795
B: 1.377
D: 0.901
F: 0.125
E: 0.511
G: 0.472
G + H: 1.062
K: 0.314

F4P CL35048-LB
350 1/2" Long 1H Lug

Color: Red
Number of Crimp: 3
Wire Range: #2
Stud Size: 1/2"
Strip Length: 1.850
A: 0.700
C: 0.874
J: 3.464
B: 1.968
D: 1.275
F: 0.165
E: 0.511
G: 0.519
G + H: 1.062
K: 0.433

F4P CL40048-LB
400 1/2" Long 1H Lug

Color: Blue
Number of Crimp: 4
Wire Range: 400
Stud Size: 1/2"
Strip Length: 1.850
A: 0.763
C: 0.948
J: 3.858
B: 1.968
D: 1.385
F: 0.177
E: 0.511
G: 0.511
G + H: 1.377
K: 0.511

F4P CL4038-LB
4/0 3/8" Long 1H Lug

Color: Purple
Number of Crimp: 2
Wire Range: 4/0
Stud Size: 3/8"
Strip Length: 1.259
A: 0.547
C: 0.688
J: 2.795
B: 1.417
D: 1
F: 0.133
E: 0.413
G: 0.519
G + H: 1.062
K: 0.314

F4P CL4048-LB
4/0 1/2" Long 1H Lug

Color: Purple
Number of Crimp: 2
Wire Range: 4/0
Stud Size: 1/2"
Strip Length: 1.259
A: 0.547
C: 0.688
J: 2.795
B: 1.417
D: 1
F: 0.133
E: 0.511
G: 0.519
G + H: 1.062
K: 0.314

F4P CL414-LB
#4 1/4" Long 1H Lug

Color: Gray
Number of Crimp: 2
Wire Range: #4
Stud Size: 1/4"
Strip Length: 0.866
A: 0.251
C: 0.342
J: 1.771
B: 0.984
D: 0.488
F: 0.086
E: 0.251
G: 0.314
G + H: 0.669
K: 0.118

F4P CL438-LB
#4 3/8" Long 1H Lug

Color: Gray
Number of Crimp: 2
Wire Range: #4
Stud Size: 3/8"
Strip Length: 0.866
A: 0.251
C: 0.342
J: 1.913
B: 0.984
D: 0.590
F: 0.086
E: 0.413
G: 0.370
G + H: 0.811
K: 0.118

F4P CL456-LB
#4 5/16" Long 1H Lug

Color: Gray
Number of Crimp: 2
Wire Range: #4
Stud Size: 5/16"
Strip Length: 0.866
A: 0.251
C: 0.342
J: 1.771
B: 0.984
D: 0.488
F: 0.086
E: 0.330
G: 0.314
G + H: 0.669
K: 0.118

F4P CL50048-LB
500 1/2" Long 1H Lug

Color: Brown
Number of Crimp: 4
Wire Range: 500
Stud Size: 1/2"
Strip Length: 2.165
A: 0.834
C: 1.062
J: 4.133
B: 2.244
D: 1.539
F: 0.216
E: 0.511
G: 0.511
G + H: 1.377
K: 0.511

F4P CL50058-LB
500 5/8" Long 1H Lug

Color: Brown
Number of Crimp: 4
Wire Range: 500
Stud Size: 5/8"
Strip Length: 2.165
A: 0.834
C: 1.062
J: 4.133
B: 2.244
D: 1.539
F: 0.216
E: 0.669
G: 0.511
G + H: 1.377
K: 0.511

F4P CL60058-LB
600 5/8" Long 1H Lug

Color: Green
Number of Crimp: 4
Wire Range: 600
Stud Size: 5/8"
Strip Length: 2.165
A: 0.925
C: 1.188
J: 4.251
B: 2.244
D: 1.716
F: 0.251
E: 0.669
G: 0.688
G + H: 1.456
K: 0.551

F4P CL614-LB
#6 1/4" Long 1H Lug

Color: Blue
Number of Crimp: 2
Wire Range: #6
Stud Size: 1/4"
Strip Length: 0.866
A: 0.204
C: 0.295
J: 1.771
B: 0.984
D: 0.421
F: 0.082
E: 0.251
G: 0.295
G + H: 0.669
K: 0.118

F4P CL638-LB
#6 3/8" Long 1H Lug

Color: Blue
Number of Crimp: 2
Wire Range: #6
Stud Size: 3/8"
Strip Length: 0.866
A: 0.204
C: 0.295
J: 1.913
B: 0.984
D: 0.590
F: 0.082
E: 0.413
G: 0.370
G + H: 0.811
K: 0.118

F4P CL75058-LB
750 5/8" Long 1H Lug

Color: Black
Number of Crimp: 4
Wire Range: 750
Stud Size: 5/8"
Strip Length: 2.559
A: 1.031
C: 1.311
J: 5.157
B: 2.637
D: 1.901
F: 0.267
E: 0.669
G: 0.688
G + H: 1.850
K: 0.669

F4P CL814-LB
#8 1/4" Long 1H Lug

Color: Red
Number of Crimp: 2
Wire Range: #8
Stud Size: 1/4"
Strip Length: 0.708
A: 0.173
C: 0.271
J: 1.515
B: 0.807
D: 0.421
F: 0.078
E: 0.251
G: 0.275
G + H: 0.590
K: 0.118
